EVPN – Native EVPN






ESI

ESI 主要用来标识CE， 相同CE使用一样的ESI.
EVPN技术为PE与某一CE的连接定义唯一的标识ESI（Ethernet Segment Identifier），连接同一CE的多个PE上的ESI值是相同，连接不同CE的ESI值不同。PE之间进行路由传播时，路由中会携带ESI值使PE间可以感知到连接同一CE的其他PE设备。

ESI共10字节， 1字节的type， 9字节vlaue。

配置案例：

1
2
3
4
5
6
7
8
9
10
RP/0/RSP0/CPU0:9001-2-PE4#show run evpn
Thu Mar 11 07:36:12.984 UTC
evpn
 interface Bundle-Ether100
  ethernet-segment
   identifier type 0 11.11.11.11.11.11.11.11.11      <<<<<MHD 多个PE上要配置相同的ESI，RT也需要配置一样（RT-4 通告用来发现MHD的peer PE， RT用来限制导入）
   bgp route-target 1111.1111.1111
  !
 !
!

EVPN BGP Route-Type

Route-type 2: MAC Advertisement

格式如下：





1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
//COMMAND
#show l2vpn forwarding bridge-domain 100:300 mac-address location 0/0/CPU0
#show evpn evi vpn-id 300 mac
#show bgp l2vpn evpn rd 10.1.1.1:300 route-type 2
#show bgp l2vpn evpn rd  10.1.1.1:300 [2][0][48][0011.0100.0001][0]/104
#show l2route evpn mac all  detail

RP/0/RSP0/CPU0:ASR9901-3-PE1#   show l2vpn forwarding bridge-domain 100:300 mac-address location 0/0/CPU0
Thu Jun 25 13:30:57.226 GMT+8
 To Resynchronize MAC table from the Network Processors, use the command...
    l2vpn resynchronize forwarding mac-address-table location <r/s/i>

Mac Address    Type    Learned from/Filtered on    LC learned Resync Age/Last Change Mapped to
-------------- ------- --------------------------- ---------- ---------------------- --------------
0012.0100.0001 EVPN    BD id: 0                    N/A        N/A                    N/A
0012.0100.0002 EVPN    BD id: 0                    N/A        N/A                    N/A
0012.0100.0003 EVPN    BD id: 0                    N/A        N/A                    N/A
0012.0100.0004 EVPN    BD id: 0                    N/A        N/A                    N/A
0012.0100.0005 EVPN    BD id: 0                    N/A        N/A                    N/A
0012.0100.0006 EVPN    BD id: 0                    N/A        N/A                    N/A
0012.0100.0007 EVPN    BD id: 0                    N/A        N/A                    N/A
0012.0100.0008 EVPN    BD id: 0                    N/A        N/A                    N/A
0012.0100.0009 EVPN    BD id: 0                    N/A        N/A                    N/A
0012.0100.000a EVPN    BD id: 0                    N/A        N/A                    N/A
0011.0100.0001 dynamic BE100.33                    N/A        25 Jun 13:28:27        N/A
0011.0100.0002 dynamic BE100.33                    N/A        25 Jun 13:28:27        N/A
0011.0100.0003 dynamic BE100.33                    N/A        25 Jun 13:28:27        N/A
0011.0100.0004 dynamic BE100.33                    N/A        25 Jun 13:27:57        N/A
0011.0100.0005 dynamic BE100.33                    N/A        25 Jun 13:28:27        N/A
0011.0100.0006 dynamic BE100.33                    N/A        25 Jun 13:28:27        N/A
0011.0100.0007 dynamic BE100.33                    N/A        25 Jun 13:28:27        N/A
0011.0100.0008 dynamic BE100.33                    N/A        25 Jun 13:28:27        N/A
0011.0100.0009 dynamic BE100.33                    N/A        25 Jun 13:28:27        N/A
0011.0100.000a dynamic BE100.33                    N/A        25 Jun 13:28:27        N/A
005f.8603.6401 dynamic BE100.33                    N/A        25 Jun 13:28:27        N/A
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#show evpn evi vpn-id 300 mac
Thu Jun 25 13:31:22.199 GMT+8

VPN-ID     Encap  MAC address    IP address                               Nexthop                                 Label
---------- ------ -------------- ---------------------------------------- --------------------------------------- --------
300        MPLS   0011.0100.0001 ::                                       Bundle-Ether100.33                      24000
300        MPLS   0011.0100.0002 ::                                       Bundle-Ether100.33                      24000
300        MPLS   0011.0100.0003 ::                                       Bundle-Ether100.33                      24000
300        MPLS   0011.0100.0004 ::                                       Bundle-Ether100.33                      24000
300        MPLS   0011.0100.0005 ::                                       Bundle-Ether100.33                      24000
300        MPLS   0011.0100.0006 ::                                       Bundle-Ether100.33                      24000
300        MPLS   0011.0100.0007 ::                                       Bundle-Ether100.33                      24000
300        MPLS   0011.0100.0008 ::                                       Bundle-Ether100.33                      24000
300        MPLS   0011.0100.0009 ::                                       Bundle-Ether100.33                      24000
300        MPLS   0011.0100.000a ::                                       Bundle-Ether100.33                      24000
300        MPLS   0012.0100.0001 ::                                       10.1.3.3                                24001
300        MPLS   0012.0100.0001 ::                                       10.1.4.4                                24007
300        MPLS   0012.0100.0002 ::                                       10.1.3.3                                24001
300        MPLS   0012.0100.0002 ::                                       10.1.4.4                                24007
300        MPLS   0012.0100.0003 ::                                       10.1.3.3                                24001
300        MPLS   0012.0100.0003 ::                                       10.1.4.4                                24007
300        MPLS   0012.0100.0004 ::                                       10.1.3.3                                24001
300        MPLS   0012.0100.0004 ::                                       10.1.4.4                                24007
300        MPLS   0012.0100.0005 ::                                       10.1.3.3                                24001
300        MPLS   0012.0100.0005 ::                                       10.1.4.4                                24007
300        MPLS   0012.0100.0006 ::                                       10.1.3.3                                24001
300        MPLS   0012.0100.0006 ::                                       10.1.4.4                                24007
300        MPLS   0012.0100.0007 ::                                       10.1.3.3                                24001
300        MPLS   0012.0100.0007 ::                                       10.1.4.4                                24007
300        MPLS   0012.0100.0008 ::                                       10.1.3.3                                24001
300        MPLS   0012.0100.0008 ::                                       10.1.4.4                                24007
300        MPLS   0012.0100.0009 ::                                       10.1.3.3                                24001
300        MPLS   0012.0100.0009 ::                                       10.1.4.4                                24007
300        MPLS   0012.0100.000a ::                                       10.1.3.3                                24001
300        MPLS   0012.0100.000a ::                                       10.1.4.4                                24007
300        MPLS   005f.8603.6401 ::                                       Bundle-Ether100.33                      24000
RP/0/RSP0/CPU0:ASR9901-3-PE1#show bgp l2vpn evpn rd 10.1.1.1:300 route-type 2
Thu Jun 25 13:32:02.731 GMT+8
BGP router identifier 10.1.1.1, local AS number 65001
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 0
BGP main routing table version 1156
BGP NSR Initial initsync version 1 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0
BGP scan interval 60 secs

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 10.1.1.1:300 (default for vrf 300)
*> [2][0][48][0011.0100.0001][0]/104
                      0.0.0.0                                0 i
*> [2][0][48][0011.0100.0002][0]/104
                      0.0.0.0                                0 i
*> [2][0][48][0011.0100.0003][0]/104
                      0.0.0.0                                0 i
*> [2][0][48][0011.0100.0004][0]/104
                      0.0.0.0                                0 i
*> [2][0][48][0011.0100.0005][0]/104
                      0.0.0.0                                0 i
*> [2][0][48][0011.0100.0006][0]/104
                      0.0.0.0                                0 i
*> [2][0][48][0011.0100.0007][0]/104
                      0.0.0.0                                0 i
*> [2][0][48][0011.0100.0008][0]/104
                      0.0.0.0                                0 i
*> [2][0][48][0011.0100.0009][0]/104
                      0.0.0.0                                0 i
*> [2][0][48][0011.0100.000a][0]/104
                      0.0.0.0                                0 i
*>i[2][0][48][0012.0100.0001][0]/104
                      10.1.3.3                      100      0 i
* i                   10.1.4.4                      100      0 i
*>i[2][0][48][0012.0100.0002][0]/104
                      10.1.3.3                      100      0 i
* i                   10.1.4.4                      100      0 i
*>i[2][0][48][0012.0100.0003][0]/104
                      10.1.3.3                      100      0 i
* i                   10.1.4.4                      100      0 i
*>i[2][0][48][0012.0100.0004][0]/104
                      10.1.3.3                      100      0 i
* i                   10.1.4.4                      100      0 i
*>i[2][0][48][0012.0100.0005][0]/104
                      10.1.3.3                      100      0 i
* i                   10.1.4.4                      100      0 i
*>i[2][0][48][0012.0100.0006][0]/104
                      10.1.3.3                      100      0 i
* i                   10.1.4.4                      100      0 i
*>i[2][0][48][0012.0100.0007][0]/104
                      10.1.3.3                      100      0 i
* i                   10.1.4.4                      100      0 i
*>i[2][0][48][0012.0100.0008][0]/104
                      10.1.3.3                      100      0 i
* i                   10.1.4.4                      100      0 i
*>i[2][0][48][0012.0100.0009][0]/104
                      10.1.3.3                      100      0 i
* i                   10.1.4.4                      100      0 i
*>i[2][0][48][0012.0100.000a][0]/104
                      10.1.3.3                      100      0 i
* i                   10.1.4.4                      100      0 i
*> [2][0][48][005f.8603.6401][0]/104
                      0.0.0.0                                0 i

Processed 21 prefixes, 31 paths
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#show bgp l2vpn evpn rd  10.1.1.1:300 [2][0][48][0011.0100.0001][0]/104
Thu Jun 25 13:32:56.482 GMT+8
BGP routing table entry for [2][0][48][0011.0100.0001][0]/104, Route Distinguisher: 10.1.1.1:300
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker               1097        1097
    Local Label: 24000
Last Modified: Jun 25 06:30:25.832 for 07:02:31
Paths: (1 available, best #1)
  Advertised to update-groups (with more than one peer):
    0.2
  Path #1: Received by speaker 0
  Advertised to update-groups (with more than one peer):
    0.2
  Local
    0.0.0.0 from 0.0.0.0 (10.1.1.1)
      Origin IGP, localpref 100, valid, redistributed, best, group-best, import-candidate, rib-install
      Received Path ID 0, Local Path ID 1, version 1097
      Extended community: SoO:10.1.1.1:300 RT:65001:300
      EVPN ESI: 0022.2222.2222.2222.2222
RP/0/RSP0/CPU0:ASR9901-3-PE1#
Route-type 3: Inclusive Multicast Advertisement

格式如下:




1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
//COMMAND

show evpn evi vpn-id 300 inclusive-multicast detail
show bgp l2vpn evpn rd 10.1.1.1:300 route-type 3
show bgp l2vpn evpn rd 10.1.1.1:300 [3][0][32][10.1.1.1]/80 detail
show l2vpn forwarding bridge-domain evpn inclusive-multicast detail location 0/0/CPU0


RP/0/RSP0/CPU0:ASR9901-3-PE1#show evpn evi vpn-id 300 inclusive-multicast detail
Thu Jun 25 13:50:32.307 GMT+8

VPN-ID     Encap  EtherTag   Originating IP
---------- ------ ---------- ----------------------------------------
300        MPLS   0          10.1.1.1
    TEPid  : 0xffffffff
    Nexthop: ::
    Label  : 24001
    Source : Local
300        MPLS   0          10.1.3.3
    TEPid  : 0xffffffff
    Nexthop: 10.1.3.3
    Label  : 24002
    Source : Remote
300        MPLS   0          10.1.4.4
    TEPid  : 0xffffffff
    Nexthop: 10.1.4.4
    Label  : 24008
    Source : Remote
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#show bgp l2vpn evpn r
rd          regexp  rnh  route-policy
route-type  rt-set
RP/0/RSP0/CPU0:ASR9901-3-PE1#show bgp l2vpn evpn rd 10.1.1.1:300 route-type 3
Thu Jun 25 13:50:54.613 GMT+8
BGP router identifier 10.1.1.1, local AS number 65001
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 0
BGP main routing table version 1156
BGP NSR Initial initsync version 1 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0
BGP scan interval 60 secs

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 10.1.1.1:300 (default for vrf 300)
*> [3][0][32][10.1.1.1]/80
                      0.0.0.0                                0 i
*>i[3][0][32][10.1.3.3]/80
                      10.1.3.3                      100      0 i
*>i[3][0][32][10.1.4.4]/80
                      10.1.4.4                      100      0 i

Processed 3 prefixes, 3 paths
RP/0/RSP0/CPU0:ASR9901-3-PE1#show bgp l2vpn evpn rd 10.1.1.1:300 [3][0][32][10.1.1.1]/80 detail
Thu Jun 25 13:51:21.093 GMT+8
BGP routing table entry for [3][0][32][10.1.1.1]/80, Route Distinguisher: 10.1.1.1:300
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker                  2           2
    Flags: 0x00040001+0x00000000;
Last Modified: Jun 22 08:10:34.832 for 3d05h
Paths: (1 available, best #1)
  Advertised to update-groups (with more than one peer):
    0.2
  Path #1: Received by speaker 0
  Flags: 0x402000000504000b, import: 0x00
  Advertised to update-groups (with more than one peer):
    0.2
  Local
    0.0.0.0 from 0.0.0.0 (10.1.1.1)
      Origin IGP, localpref 100, valid, redistributed, best, group-best, import-candidate
      Received Path ID 0, Local Path ID 1, version 2
      Extended community: RT:65001:300
      PMSI: flags 0x00, type 6, label 24001, ID 0x0a010101
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#show l2vpn forwarding bridge-domain 100:300 evpn inclusive-multicast de
ldebug  detail
RP/0/RSP0/CPU0:ASR9901-3-PE1#show l2vpn forwarding bridge-domain 100:300 evpn inclusive-multicast detail location 0/0/CPU0
Thu Jun 25 13:51:57.462 GMT+8
Bridge-Domain Name               BD-ID  XCID       TEP-id     Next Hop        Label/VNI  Encap    Status
-------------------------------- ------ ---------- ---------- --------------- ---------- -------- -------
100:300                          0      0x80000003
   Status: bound
   Flags: default multicast replication
                                                   0xffffffff 10.1.3.3        24002      10       bound    <<<<<<<
                                                   0xffffffff 10.1.4.4        24008      10       bound    <<<<<<<
Route-type 4: DF Election
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
//Command:

show evpn ethernet-segment interface Bundle-Ether100 detail
show bgp l2vpn evpn rd 10.1.3.3:0 route-type ethernet-segment
show bgp l2vpn evpn rd 10.1.3.3:0 [4][0011.1111.1111.1111.1111][32][10.1.3.3]/128 detail
show bgp rt l2vpn evpn
show evpn ethernet-segment interface Bundle-Ether100 detail
show evpn ethernet-segment interface Bundle-Ether100 carving detail

RP/0/RSP0/CPU0:9901-1-PE3#show evpn ethernet-segment interface bundle-Ether 100 detail
Thu Nov 26 02:05:25.194 HKT
Legend:
  B   - No Forwarders EVPN-enabled,
  C   - Backbone Source MAC missing (PBB-EVPN),
  RT  - ES-Import Route Target missing,
  E   - ESI missing,
  H   - Interface handle missing,
  I   - Name (Interface or Virtual Access) missing,
  M   - Interface in Down state,
  O   - BGP End of Download missing,
  P   - Interface already Access Protected,
  Pf  - Interface forced single-homed,
  R   - BGP RID not received,
  S   - Interface in redundancy standby state,
  X   - ESI-extracted MAC Conflict
  SHG - No local split-horizon-group label allocated

Ethernet Segment Id      Interface                          Nexthops
------------------------ ---------------------------------- --------------------
0011.1111.1111.1111.1111 BE100                              10.1.3.3
                                                            10.1.4.4
  ES to BGP Gates   : Ready
  ES to L2FIB Gates : P
  Main port         :
     Interface name : Bundle-Ether100
     Interface MAC  : f4db.e68d.352b
     IfHandle       : 0x00000720
     State          : Up
     Redundancy     : Not Defined
  ESI type          : 0
     Value          : 11.1111.1111.1111.1111
  ES Import RT      : 1111.1111.1111 (Local)
  Source MAC        : 0000.0000.0000 (N/A)
  Topology          :
     Operational    : MH, Single-flow-active
     Configured     : All-active (AApF) (default)
  Service Carving   : Auto-selection
     Multicast      : Disabled
  Peering Details   :
     10.1.3.3 [MOD:P:00]
     10.1.4.4 [MOD:P:00]

  Service Carving Results:
     Forwarders     : 2
     Elected        : 0
     Not Elected    : 0
  EVPN-VPWS Service Carving Results:
     Primary        : 0
     Backup         : 0
     Non-DF         : 0
  MAC Flushing mode : STP-TCN
  Peering timer     : 3 sec [not running]
  Recovery timer    : 30 sec [not running]
  Carving timer     : 0 sec [not running]
  Local SHG label   : 24005
  Remote SHG labels : 1
              24009 : nexthop 10.1.4.4
  Access signal mode: Bundle OOS (Default)

RP/0/RSP0/CPU0:9901-1-PE3# show bgp l2vpn evpn rd 10.1.3.3:0 route-type ?
  <1-8>              Route type value
  ethernet-ad        Display EVPN Ethernet Advertisement routes
  ethernet-segment   Display EVPN Ethernet Segment routes
  igmp-join-synch    Display EVPN MCAST Join synch routes
  igmp-leave-synch   Display EVPN MCAST Leave synch routes
  inclusive-mcast    Display EVPN Inclusive Multicast routes
  ip-advertisement   Display EVPN IP Advertisement routes
  mac-advertisement  Display EVPN MAC Advertisement routes
RP/0/RSP0/CPU0:9901-1-PE3# show bgp l2vpn evpn rd 10.1.3.3:0 route-type ethernet-segment
Thu Nov 26 02:06:16.996 HKT
BGP router identifier 10.1.3.3, local AS number 65001
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 0
BGP main routing table version 427
BGP NSR Initial initsync version 1 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0
BGP scan interval 60 secs

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 10.1.3.3:0 (default for vrf ES:GLOBAL)
*> [4][0011.1111.1111.1111.1111][32][10.1.3.3]/128
                      0.0.0.0                                0 i
*>i[4][0011.1111.1111.1111.1111][32][10.1.4.4]/128
                      10.1.4.4                      100      0 i

Processed 2 prefixes, 2 paths
RP/0/RSP0/CPU0:9901-1-PE3# show bgp l2vpn evpn rd 10.1.3.3:0 [4][0011.1111.1111.1111.1111][32][10.1.3.3]/128 detail
Thu Nov 26 02:06:36.320 HKT
BGP routing table entry for [4][0011.1111.1111.1111.1111][32][10.1.3.3]/128, Route Distinguisher: 10.1.3.3:0
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker                299         299
    Flags: 0x00040001+0x00000000;
Last Modified: Nov 25 18:09:33.833 for 07:57:03
Paths: (1 available, best #1)
  Advertised to update-groups (with more than one peer):
    0.2
  Path #1: Received by speaker 0
  Flags: 0x400002000504000b, import: 0x00, EVPN: 0x0
  Advertised to update-groups (with more than one peer):
    0.2
  Local
    0.0.0.0 from 0.0.0.0 (10.1.3.3), if-handle 0x00000000
      Origin IGP, localpref 100, valid, redistributed, best, group-best, import-candidate, rib-install
      Received Path ID 0, Local Path ID 1, version 299
      Extended community: EVPN ES Import:1111.1111.1111 DF Election:0:0x0000:0
RP/0/RSP0/CPU0:9901-1-PE3#show bgp rt
 rt  rt-set
RP/0/RSP0/CPU0:9901-1-PE3#show bgp rt l2vpn evpn
Thu Nov 26 02:07:02.324 HKT
EXTCOMM         IMP/EXP
RT:65001:300             1 / 1
RT:65001:400             1 / 1
EVPN ES Import:1111.1111.1111            1 / 0
Processed 3 entries
RP/0/RSP0/CPU0:9901-1-PE3#
RP/0/RSP0/CPU0:9901-1-PE3#
RP/0/RSP0/CPU0:9901-1-PE3#
RP/0/RSP0/CPU0:9901-1-PE3#
RP/0/RSP0/CPU0:9901-1-PE3#show evpn ethernet-segment interface bundle-Ether 100 carving detail
Thu Nov 26 02:07:46.647 HKT
Legend:
  B   - No Forwarders EVPN-enabled,
  C   - Backbone Source MAC missing (PBB-EVPN),
  RT  - ES-Import Route Target missing,
  E   - ESI missing,
  H   - Interface handle missing,
  I   - Name (Interface or Virtual Access) missing,
  M   - Interface in Down state,
  O   - BGP End of Download missing,
  P   - Interface already Access Protected,
  Pf  - Interface forced single-homed,
  R   - BGP RID not received,
  S   - Interface in redundancy standby state,
  X   - ESI-extracted MAC Conflict
  SHG - No local split-horizon-group label allocated

Ethernet Segment Id      Interface                          Nexthops
------------------------ ---------------------------------- --------------------
0011.1111.1111.1111.1111 BE100                              10.1.3.3
                                                            10.1.4.4
  ES to BGP Gates   : Ready
  ES to L2FIB Gates : P
  Main port         :
     Interface name : Bundle-Ether100
     Interface MAC  : f4db.e68d.352b
     IfHandle       : 0x00000720
     State          : Up
     Redundancy     : Not Defined
  ESI type          : 0
     Value          : 11.1111.1111.1111.1111
  ES Import RT      : 1111.1111.1111 (Local)
  Source MAC        : 0000.0000.0000 (N/A)
  Topology          :
     Operational    : MH, Single-flow-active
     Configured     : All-active (AApF) (default)
  Service Carving   : Auto-selection
     Multicast      : Disabled
  Peering Details   :
     10.1.3.3 [MOD:P:00]
     10.1.4.4 [MOD:P:00]

  Service Carving Results:
     Forwarders     : 2
     Elected        : 0
     Not Elected    : 0
  EVPN-VPWS Service Carving Results:
     Primary        : 0
     Backup         : 0
     Non-DF         : 0
  MAC Flushing mode : STP-TCN
  Peering timer     : 3 sec [not running]
  Recovery timer    : 30 sec [not running]
  Carving timer     : 0 sec [not running]
  Local SHG label   : 24005
  Remote SHG labels : 1
              24009 : nexthop 10.1.4.4
  Access signal mode: Bundle OOS (Default)

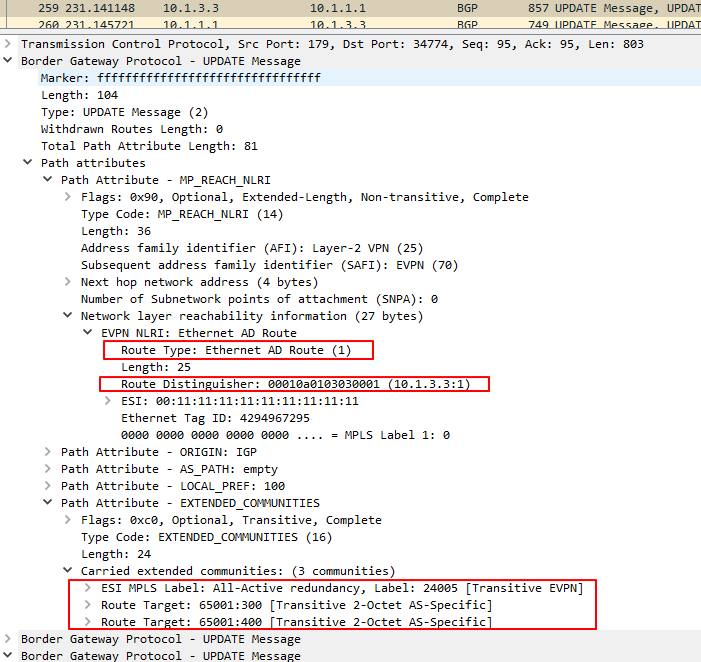

Route-type 1 ES-EAD ( Split-Horizon )

PE4 收到从CE过来的广播流量会复制两份， 一份发给PE1 封装为 SR Label / BUM Label ; 一份给PE3 封装为 SR Label / BUM Label / SHG label



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
//COMMAND

show evpn ethernet-segment interface Bundle-Ether100 detail
show bgp l2vpn evpn route-type ethernet-ad
show bgp l2vpn evpn rd 10.1.3.3:0 [1][10.1.3.3:1][0011.1111.1111.1111.1111][4294967295]/184 detail
show bgp l2vpn evpn rd 10.1.3.3:300 route-type 1

RP/0/RSP0/CPU0:9901-1-PE3#show evpn ethernet-segment interface bundle-Ether 100 detail
Thu Nov 26 15:34:46.741 HKT
Legend:
  B   - No Forwarders EVPN-enabled,
  C   - Backbone Source MAC missing (PBB-EVPN),
  RT  - ES-Import Route Target missing,
  E   - ESI missing,
  H   - Interface handle missing,
  I   - Name (Interface or Virtual Access) missing,
  M   - Interface in Down state,
  O   - BGP End of Download missing,
  P   - Interface already Access Protected,
  Pf  - Interface forced single-homed,
  R   - BGP RID not received,
  S   - Interface in redundancy standby state,
  X   - ESI-extracted MAC Conflict
  SHG - No local split-horizon-group label allocated

Ethernet Segment Id      Interface                          Nexthops
------------------------ ---------------------------------- --------------------
0011.1111.1111.1111.1111 BE100                              10.1.3.3
                                                            10.1.4.4
  ES to BGP Gates   : Ready
  ES to L2FIB Gates : P
  Main port         :
     Interface name : Bundle-Ether100
     Interface MAC  : f4db.e68d.352b
     IfHandle       : 0x00000720
     State          : Up
     Redundancy     : Not Defined
  ESI type          : 0
     Value          : 11.1111.1111.1111.1111
  ES Import RT      : 1111.1111.1111 (Local)
  Source MAC        : 0000.0000.0000 (N/A)
  Topology          :
     Operational    : MH, Single-flow-active
     Configured     : All-active (AApF) (default)
  Service Carving   : Auto-selection
     Multicast      : Disabled
  Peering Details   :
     10.1.3.3 [MOD:P:00]
     10.1.4.4 [MOD:P:00]

  Service Carving Results:
     Forwarders     : 2
     Elected        : 0
     Not Elected    : 0
  EVPN-VPWS Service Carving Results:
     Primary        : 0
     Backup         : 0
     Non-DF         : 0
  MAC Flushing mode : STP-TCN
  Peering timer     : 3 sec [not running]
  Recovery timer    : 30 sec [not running]
  Carving timer     : 0 sec [not running]
  Local SHG label   : 24005
  Remote SHG labels : 1
              24009 : nexthop 10.1.4.4
  Access signal mode: Bundle OOS (Default)

RP/0/RSP0/CPU0:9901-1-PE3#
RP/0/RSP0/CPU0:9901-1-PE3#
RP/0/RSP0/CPU0:9901-1-PE3#
RP/0/RSP0/CPU0:9901-1-PE3#show bgp l2vpn evpn  route-type ethernet-ad
Thu Nov 26 15:35:04.527 HKT
BGP router identifier 10.1.3.3, local AS number 65001
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 0
BGP main routing table version 427
BGP NSR Initial initsync version 1 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0
BGP scan interval 60 secs

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 10.1.1.1:1
*>i[1][10.1.1.1:1][0022.2222.2222.2222.2222][4294967295]/184
                      10.1.1.1                      100      0 i
Route Distinguisher: 10.1.1.1:300
*>i[1][0022.2222.2222.2222.2222][0]/120
                      10.1.1.1                      100      0 i
Route Distinguisher: 10.1.1.1:400
*>i[1][0022.2222.2222.2222.2222][0]/120
                      10.1.1.1                      100      0 i
Route Distinguisher: 10.1.3.3:0 (default for vrf ES:GLOBAL)
*> [1][10.1.3.3:1][0011.1111.1111.1111.1111][4294967295]/184
                      0.0.0.0                                0 i
Route Distinguisher: 10.1.3.3:300 (default for vrf 300)
*> [1][0011.1111.1111.1111.1111][0]/120
                      0.0.0.0                                0 i
* i                   10.1.4.4                      100      0 i
*>i[1][0011.1111.1111.1111.1111][4294967295]/120
                      10.1.4.4                      100      0 i
*>i[1][0022.2222.2222.2222.2222][0]/120
                      10.1.1.1                      100      0 i
*>i[1][0022.2222.2222.2222.2222][4294967295]/120
                      10.1.1.1                      100      0 i
Route Distinguisher: 10.1.3.3:400 (default for vrf 400)
*> [1][0011.1111.1111.1111.1111][0]/120
                      0.0.0.0                                0 i
* i                   10.1.4.4                      100      0 i
*>i[1][0011.1111.1111.1111.1111][4294967295]/120
                      10.1.4.4                      100      0 i
*>i[1][0022.2222.2222.2222.2222][0]/120
                      10.1.1.1                      100      0 i
*>i[1][0022.2222.2222.2222.2222][4294967295]/120
                      10.1.1.1                      100      0 i
Route Distinguisher: 10.1.4.4:1
*>i[1][10.1.4.4:1][0011.1111.1111.1111.1111][4294967295]/184
                      10.1.4.4                      100      0 i
Route Distinguisher: 10.1.4.4:300
*>i[1][0011.1111.1111.1111.1111][0]/120
                      10.1.4.4                      100      0 i
Route Distinguisher: 10.1.4.4:400
*>i[1][0011.1111.1111.1111.1111][0]/120
                      10.1.4.4                      100      0 i

Processed 15 prefixes, 17 paths
RP/0/RSP0/CPU0:9901-1-PE3#
RP/0/RSP0/CPU0:9901-1-PE3#
RP/0/RSP0/CPU0:9901-1-PE3#show bgp l2vpn evpn rd 10.1.3.3:0 [1][10.1.3.3:1][0011.1111.1111.1111.1111][4294967295]/184 detail
Thu Nov 26 15:36:24.408 HKT
BGP routing table entry for [1][10.1.3.3:1][0011.1111.1111.1111.1111][4294967295]/184, Route Distinguisher: 10.1.3.3:0
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker                304         304
    Local Label: 0 (no rewrite);
    Flags: 0x00040001+0x00000000;
Last Modified: Nov 25 18:09:36.833 for 21:26:48
Paths: (1 available, best #1)
  Advertised to update-groups (with more than one peer):
    0.2
  Path #1: Received by speaker 0
  Flags: 0x402002000504000b, import: 0x00, EVPN: 0x0
  Advertised to update-groups (with more than one peer):
    0.2
  Local
    0.0.0.0 from 0.0.0.0 (10.1.3.3), if-handle 0x00000000
      Origin IGP, localpref 100, valid, redistributed, best, group-best, import-candidate, rib-install
      Received Path ID 0, Local Path ID 1, version 304
      Extended community: EVPN ESI Label:0x02:24005 RT:65001:300 RT:65001:400
RP/0/RSP0/CPU0:9901-1-PE3#
RP/0/RSP0/CPU0:9901-1-PE3#show bgp l2vpn evpn rd 10.1.3.3:300 route-type 1
Thu Nov 26 15:37:29.610 HKT
BGP router identifier 10.1.3.3, local AS number 65001
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 0
BGP main routing table version 427
BGP NSR Initial initsync version 1 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0
BGP scan interval 60 secs

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 10.1.3.3:300 (default for vrf 300)
*> [1][0011.1111.1111.1111.1111][0]/120
                      0.0.0.0                                0 i
* i                   10.1.4.4                      100      0 i
*>i[1][0011.1111.1111.1111.1111][4294967295]/120
                      10.1.4.4                      100      0 i
*>i[1][0022.2222.2222.2222.2222][0]/120
                      10.1.1.1                      100      0 i
*>i[1][0022.2222.2222.2222.2222][4294967295]/120
                      10.1.1.1                      100      0 i

Processed 4 prefixes, 5 paths
Route-type 1 EVI-EAD(Aliasing)

生么是aliasing：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
Command:

show bgp l2vpn evpn rd 10.1.1.1:300 route-type 1
show bgp l2vpn evpn rd 10.1.1.1:300 [1][0011.1111.1111.1111.1111][0]/120 detail
show evpn internal-label vpn-id 300 detail
show cli history detail


RP/0/RSP0/CPU0:ASR9901-3-PE1#show bgp l2vpn evpn rd 10.1.1.1:300 route-type 1
Fri Jun 26 03:57:53.556 GMT+8
BGP router identifier 10.1.1.1, local AS number 65001
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 0
BGP main routing table version 1156
BGP NSR Initial initsync version 1 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0
BGP scan interval 60 secs

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 10.1.1.1:300 (default for vrf 300)
*>i[1][0011.1111.1111.1111.1111][0]/120
                      10.1.3.3                      100      0 i
* i                   10.1.4.4                      100      0 i
*>i[1][0011.1111.1111.1111.1111][4294967295]/120
                      10.1.3.3                      100      0 i
* i                   10.1.4.4                      100      0 i
*> [1][0022.2222.2222.2222.2222][0]/120
                      0.0.0.0                                0 i

Processed 3 prefixes, 5 paths
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#show bgp l2vpn evpn rd 10.1.1.1:300 [1][0011.1111.1111.1111.1111][0]/120 detail
Fri Jun 26 03:58:28.256 GMT+8
BGP routing table entry for [1][0011.1111.1111.1111.1111][0]/120, Route Distinguisher: 10.1.1.1:300
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker               1091        1091
    Flags: 0x00001001+0x00010000;
Last Modified: Jun 25 06:29:04.832 for 21:29:24
Paths: (2 available, best #1)
  Not advertised to any peer
  Path #1: Received by speaker 0
  Flags: 0x4000020005068005, import: 0x80
  Not advertised to any peer
  Local, (received & used)
    10.1.3.3 (metric 2) from 10.1.3.3 (10.1.3.3)
      Received Label 24001
      Origin IGP, localpref 100, valid, internal, best, group-best, import-candidate, imported, rib-install
      Received Path ID 0, Local Path ID 1, version 1091
      Extended community: RT:65001:300
      Source AFI: L2VPN EVPN, Source VRF: default, Source Route Distinguisher: 10.1.3.3:300
  Path #2: Received by speaker 0
  Flags: 0x4000020004028005, import: 0x80
  Not advertised to any peer
  Local, (received & used)
    10.1.4.4 (metric 2) from 10.1.4.4 (10.1.4.4)
      Received Label 24007
      Origin IGP, localpref 100, valid, internal, import-candidate, imported, rib-install
      Received Path ID 0, Local Path ID 0, version 0
      Extended community: RT:65001:300
      Source AFI: L2VPN EVPN, Source VRF: default, Source Route Distinguisher: 10.1.4.4:300
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#show evpn internal-label vpn-id 300 detail
Fri Jun 26 03:59:07.981 GMT+8

VPN-ID     Encap  Ethernet Segment Id         EtherTag   Label
---------- ------ --------------------------- --------   --------
300        MPLS   0011.1111.1111.1111.1111    0          24003
   Multi-paths resolved: TRUE (Remote all-active)
   Multi-paths Internal label: 24003
   Pathlists:
     MAC        10.1.3.3                                 24001
                10.1.4.4                                 24007
     EAD/ES     10.1.3.3                                 0
                10.1.4.4                                 0
     EAD/EVI    10.1.3.3                                 24001
                10.1.4.4                                 24007
   Summary pathlist:
     0xffffffff 10.1.3.3                                 24001
     0xffffffff 10.1.4.4                                 24007

配置

PE1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
RP/0/RSP0/CPU0:ASR9901-3-PE1#show run l2vpn
Fri Jun 26 05:24:34.678 GMT+8
l2vpn
 description elan
 bridge group 100
  bridge-domain 300
   description elan
   interface Bundle-Ether100.33
    split-horizon group
   !
   evi 300
   !
  !
  bridge-domain 400
   description elan
   interface Bundle-Ether100.44
    split-horizon group
   !
   evi 400
   !
  !
 !
!

RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#show run evpn
Fri Jun 26 05:24:38.189 GMT+8
evpn
 evi 300
  bgp
   route-target import 65001:300
   route-target export 65001:300
  !
  advertise-mac
  !
 !
 evi 400
  bgp
   route-target import 65001:400
   route-target export 65001:400
  !
  advertise-mac
  !
 !
 interface Bundle-Ether100
  ethernet-segment
   identifier type 0 22.22.22.22.22.22.22.22.22
   bgp route-target 2222.2222.2222
  !
 !
!

RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#show run router bgp
Fri Jun 26 05:24:46.108 GMT+8
router bgp 65001
 bgp router-id 10.1.1.1
 address-family l2vpn evpn
 !
 neighbor 10.1.3.3
  remote-as 65001
  update-source Loopback100
  address-family l2vpn evpn
   soft-reconfiguration inbound always
  !
 !
 neighbor 10.1.4.4
  remote-as 65001
  update-source Loopback100
  address-family l2vpn evpn
   soft-reconfiguration inbound always
  !
 !
!

RP/0/RSP0/CPU0:ASR9901-3-PE1#
RP/0/RSP0/CPU0:ASR9901-3-PE1#show run router isis
Fri Jun 26 05:24:49.847 GMT+8
router isis xuxing
 is-type level-2-only
 net 49.0000.0000.0001.00
 address-family ipv4 unicast
  metric-style wide
  segment-routing mpls
 !
 interface Loopback100
  passive
  circuit-type level-2-only
  address-family ipv4 unicast
   prefix-sid absolute 16001
  !
 !
 interface GigabitEthernet0/0/0/0
  circuit-type level-2-only
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
   metric 1
  !
 !
!
RP/0/RSP0/CPU0:ASR9901-3-PE1#show run int bundle-ether 100*
Fri Jun 26 05:26:06.184 GMT+8
interface Bundle-Ether100
 lacp system mac 0100.0100.0100
 load-interval 30
!
interface Bundle-Ether100.33 l2transport
 encapsulation dot1q 33
 rewrite ingress tag pop 1 symmetric
!
interface Bundle-Ether100.44 l2transport
 encapsulation dot1q 44
 rewrite ingress tag pop 1 symmetric
!
PE3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
RP/0/RSP0/CPU0:9901-1-PE3#show run l2vpn
Thu Nov 26 17:32:50.916 HKT
l2vpn
 description elan
 bridge group 100
  bridge-domain 300
   description elan
   interface Bundle-Ether100.33
    split-horizon group
   !
   evi 300
   !
  !
  bridge-domain 400
   description elan
   interface Bundle-Ether100.44
    split-horizon group
   !
   evi 400
   !
  !
 !
!

RP/0/RSP0/CPU0:9901-1-PE3#show run evpn
Thu Nov 26 17:32:53.898 HKT
evpn
 evi 300
  bgp
   route-target import 65001:300
   route-target export 65001:300
  !
  advertise-mac
  !
 !
 evi 400
  bgp
   route-target import 65001:400
   route-target export 65001:400
  !
  advertise-mac
  !
 !
 interface Bundle-Ether100
  ethernet-segment
   identifier type 0 11.11.11.11.11.11.11.11.11
   bgp route-target 1111.1111.1111
  !
 !
!

RP/0/RSP0/CPU0:9901-1-PE3#show run router bgp
Thu Nov 26 17:32:57.445 HKT
router bgp 65001
 bgp router-id 10.1.3.3
 address-family l2vpn evpn
 !
 neighbor 10.1.1.1
  remote-as 65001
  update-source Loopback100
  address-family l2vpn evpn
  !
 !
 neighbor 10.1.4.4
  remote-as 65001
  update-source Loopback100
  address-family l2vpn evpn
  !
 !
!

RP/0/RSP0/CPU0:9901-1-PE3#show run router isis
Thu Nov 26 17:33:03.779 HKT
router isis xuxing
 is-type level-2-only
 net 49.0000.0000.0003.00
 address-family ipv4 unicast
  metric-style wide
  segment-routing mpls
 !
 interface Loopback100
  passive
  circuit-type level-2-only
  address-family ipv4 unicast
   prefix-sid absolute 16003
  !
 !
 interface TenGigE0/0/0/30
  circuit-type level-2-only
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
   metric 1
  !
 !
!

RP/0/RSP0/CPU0:9901-1-PE3#
RP/0/RSP0/CPU0:9901-1-PE3#show run int bundle-ether 100*
Thu Nov 26 17:33:08.354 HKT
interface Bundle-Ether100
 lacp system mac 0100.0100.0100
 load-interval 30
!
interface Bundle-Ether100.33 l2transport
 encapsulation dot1q 33
 rewrite ingress tag pop 1 symmetric
!
interface Bundle-Ether100.44 l2transport
 encapsulation dot1q 44
 rewrite ingress tag pop 1 symmetric
PE4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
RP/0/RSP0/CPU0:9001-2-PE4#show run l2vpn
Fri Mar 12 00:06:17.309 UTC
l2vpn
 description elan
 bridge group 100
  bridge-domain 300
   description elan
   interface Bundle-Ether100.33
    split-horizon group
   !
   evi 300
   !
  !
  bridge-domain 400
   description elan
   interface Bundle-Ether100.44
    split-horizon group
   !
   evi 400
   !
  !
 !
!

RP/0/RSP0/CPU0:9001-2-PE4#show run evpn
Fri Mar 12 00:06:22.449 UTC
evpn
 evi 300
  bgp
   route-target import 65001:300
   route-target export 65001:300
  !
  advertise-mac
  !
 !
 evi 400
  bgp
   route-target import 65001:400
   route-target export 65001:400
  !
  advertise-mac
  !
 !
 interface Bundle-Ether100
  ethernet-segment
   identifier type 0 11.11.11.11.11.11.11.11.11
   bgp route-target 1111.1111.1111
  !
 !
!

RP/0/RSP0/CPU0:9001-2-PE4#show run route rbg
                                    ^
% Invalid input detected at '^' marker.
RP/0/RSP0/CPU0:9001-2-PE4#show run router bgp
Fri Mar 12 00:06:31.815 UTC
router bgp 65001
 bgp router-id 10.1.4.4
 address-family l2vpn evpn
 !
 neighbor 10.1.1.1
  remote-as 65001
  update-source Loopback100
  address-family l2vpn evpn
  !
 !
 neighbor 10.1.3.3
  remote-as 65001
  update-source Loopback100
  address-family l2vpn evpn
  !
 !
!

RP/0/RSP0/CPU0:9001-2-PE4#show run router isis
Fri Mar 12 00:06:35.304 UTC
router isis xuxing
 is-type level-2-only
 net 49.0000.0000.0004.00
 address-family ipv4 unicast
  metric-style wide
  segment-routing mpls
 !
 interface Loopback100
  passive
  circuit-type level-2-only
  address-family ipv4 unicast
   prefix-sid absolute 16004
  !
 !
 interface TenGigE0/0/2/2
  circuit-type level-2-only
  point-to-point
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
   metric 1
  !
 !
!

RP/0/RSP0/CPU0:9001-2-PE4#
RP/0/RSP0/CPU0:9001-2-PE4#
RP/0/RSP0/CPU0:9001-2-PE4#show run int bundle-ether 100*
Fri Mar 12 00:06:41.755 UTC
interface Bundle-Ether100
 lacp system mac 0100.0100.0100
 load-interval 30
!
interface Bundle-Ether100.33 l2transport
 encapsulation dot1q 33
 rewrite ingress tag pop 1 symmetric
!
interface Bundle-Ether100.44 l2transport
 encapsulation dot1q 44
 rewrite ingress tag pop 1 symmetric
!
at

No comments:

Post a Comment

Subscribe to: Post Comments (Atom)
